Waterproof Solder Sleeve Terminal Block 50Pcs Boxed

Description:

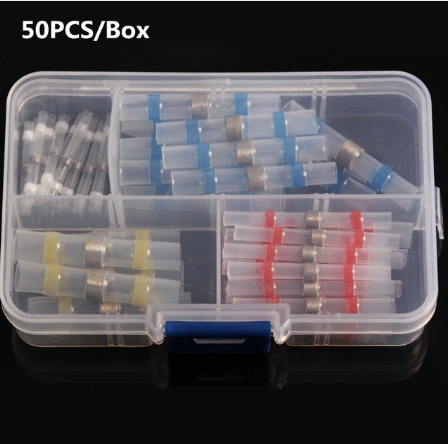

• 50pcs:

• 20 x Red Shrink Connectors: Diameter 3.0mm, Cable cross-section 0.5-1.0mm⊃2; 22-18AWG

• 15 x Blue Shrink Connectors: Diameter 5.0mm, Cable cross-section 1.5-2.5mm⊃2; 16-14AWG

• 10 x White Shrink Connectors: Diameter 1.5mm, Cable cross-section 0.25-0.34mm⊃2; 26-24AWG

• 5 x Yellow Shrink Connectors: Diameter 6.0mm, Cable cross-section 4.0-6.0mm⊃2; 12-10AWG

100pcs:

• 25pcs White (AWG 26-24)

• 35pcs Red (AWG 22-18)

• 30pcs Blue (AWG 16-14)

• 10pcs Yellow (AWG 12-10)

An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications
Polyolefin tubing in outside and hot melt adhesive in inside
Solder and seal and with advanced waterproof function
Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation

Specification:
Insulation: PE
Plating: Tin
Terminal Body: Copper
Color:Red,Blue,White,Yellow

Red Shrink Connectors: Diameter 3.0 mm, Cable cross-section 0.5-1.0mm2 22-18AWG
 Blue Shrink Connectors: Diameter 5.0mm, Cable cross-section 1.5-2.5mm2 16-14AWG
 White Shrink Connectors: Diameter 1.5 mm, Cable cross-section 0.25-0.34mm2 26-24AWG
 Yellow Shrink Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0mm2 12-10AWG

Package included:
1x 100Pcs (Four Sizes) Heat Shrink Wire Connectors
